Trennschalter DC

Items: 0
004660060
LS16 SMA A2
Klassifizierungsname:
Funktion: PV-Lasttrennschalter, 0-1
thermischer Strom Ith (A): 16
Bemessungsbetriebsstrom Ie DC-21 B at 1000V DC (A): 16
max. Bemessungsbetriebsspannung Ur (V)): 1500
004660061
LS25 SMA A2
Klassifizierungsname:
Funktion: PV-Lasttrennschalter, 0-1
thermischer Strom Ith (A): 25
Bemessungsbetriebsstrom Ie DC-21 B at 1000V DC (A): 25
max. Bemessungsbetriebsspannung Ur (V)): 1500
004660062
LS32 SMA A2
Klassifizierungsname:
Funktion: PV-Lasttrennschalter, 0-1
thermischer Strom Ith (A): 32
Bemessungsbetriebsstrom Ie DC-21 B at 1000V DC (A): 32
max. Bemessungsbetriebsspannung Ur (V)): 1500
004660063
LS16 SMA A4
Klassifizierungsname:
Funktion: PV-Lasttrennschalter, 0-1
thermischer Strom Ith (A): 16
Bemessungsbetriebsstrom Ie DC-21 B at 1000V DC (A): 16
max. Bemessungsbetriebsspannung Ur (V)): 1500
004660064
LS25 SMA A4
Klassifizierungsname:
Funktion: PV-Lasttrennschalter, 0-1
thermischer Strom Ith (A): 25
Bemessungsbetriebsstrom Ie DC-21 B at 1000V DC (A): 25
max. Bemessungsbetriebsspannung Ur (V)): 1500
004660065
LS32 SMA A4
Klassifizierungsname:
Funktion: PV-Lasttrennschalter, 0-1
thermischer Strom Ith (A): 32
Bemessungsbetriebsstrom Ie DC-21 B at 1000V DC (A): 32
max. Bemessungsbetriebsspannung Ur (V)): 1500
004660066
LS32 SMA A4+2
Klassifizierungsname:
Funktion: PV-Lasttrennschalter, 0-1
thermischer Strom Ith (A): 32
Bemessungsbetriebsstrom Ie DC-21 B at 1000V DC (A): 58
max. Bemessungsbetriebsspannung Ur (V)): 1500
004661857
LBS 500 4P DC1000
Klassifizierungsname:
Funktion: PV-Lasttrennschalter, 0-1
thermischer Strom Ith (A): 500
Bemessungsbetriebsstrom Ie DC-21 B at 1000V DC (A): 500
max. Bemessungsbetriebsspannung Ur (V)): 1000
004661858
LBS 275 3P DC1500
Klassifizierungsname:
Funktion: PV-Lasttrennschalter, 0-1
thermischer Strom Ith (A): 275
Bemessungsbetriebsstrom Ie DC-21 B at 1000V DC (A): 275
max. Bemessungsbetriebsspannung Ur (V)): 1500
004661856
LBS 400 4P DC1000
Klassifizierungsname:
Funktion: PV-Lasttrennschalter, 0-1
thermischer Strom Ith (A): 400
Bemessungsbetriebsstrom Ie DC-21 B at 1000V DC (A): 400
max. Bemessungsbetriebsspannung Ur (V)): 1000
004661853
LBS 100 2P DC1000
Klassifizierungsname:
Funktion: PV-Lasttrennschalter, 0-1
thermischer Strom Ith (A): 100
Bemessungsbetriebsstrom Ie DC-21 B at 1000V DC (A): 100
max. Bemessungsbetriebsspannung Ur (V)): 1000
004661854
LBS 160 2P DC1000
Klassifizierungsname:
Funktion: PV-Lasttrennschalter, 0-1
thermischer Strom Ith (A): 160
Bemessungsbetriebsstrom Ie DC-21 B at 1000V DC (A): 160
max. Bemessungsbetriebsspannung Ur (V)): 1000
004661855
LBS 250 2P DC1000
Klassifizierungsname:
Funktion: PV-Lasttrennschalter, 0-1
thermischer Strom Ith (A): 250
Bemessungsbetriebsstrom Ie DC-21 B at 1000V DC (A): 250
max. Bemessungsbetriebsspannung Ur (V)): 1000
004661861
LBS-DH630/R
Klassifizierungsname:
Funktion: Zubehör
thermischer Strom Ith (A):
Bemessungsbetriebsstrom Ie DC-21 B at 1000V DC (A):
max. Bemessungsbetriebsspannung Ur (V)):
004661862
LBS-TS250 2P DC
Klassifizierungsname:
Funktion: Zubehör
thermischer Strom Ith (A):
Bemessungsbetriebsstrom Ie DC-21 B at 1000V DC (A):
max. Bemessungsbetriebsspannung Ur (V)):
004661863
LBS-TS500 4P DC
Klassifizierungsname:
Funktion: Zubehör
thermischer Strom Ith (A):
Bemessungsbetriebsstrom Ie DC-21 B at 1000V DC (A):
max. Bemessungsbetriebsspannung Ur (V)):
004661865
LBS-TS500 3P DC
Klassifizierungsname:
Funktion: Zubehör
thermischer Strom Ith (A):
Bemessungsbetriebsstrom Ie DC-21 B at 1000V DC (A):
max. Bemessungsbetriebsspannung Ur (V)):
004661866
LBS-BR400 1P DC
Klassifizierungsname:
Funktion: Zubehör
thermischer Strom Ith (A):
Bemessungsbetriebsstrom Ie DC-21 B at 1000V DC (A):
max. Bemessungsbetriebsspannung Ur (V)):
004661864
LBS-BR500 1P DC
Klassifizierungsname:
Funktion: Zubehör
thermischer Strom Ith (A):
Bemessungsbetriebsstrom Ie DC-21 B at 1000V DC (A):
max. Bemessungsbetriebsspannung Ur (V)):
004661923
LBS 200 3P AC1000
Klassifizierungsname:
Funktion:
thermischer Strom Ith (A): 200
Bemessungsbetriebsstrom Ie DC-21 B at 1000V DC (A):
max. Bemessungsbetriebsspannung Ur (V)):

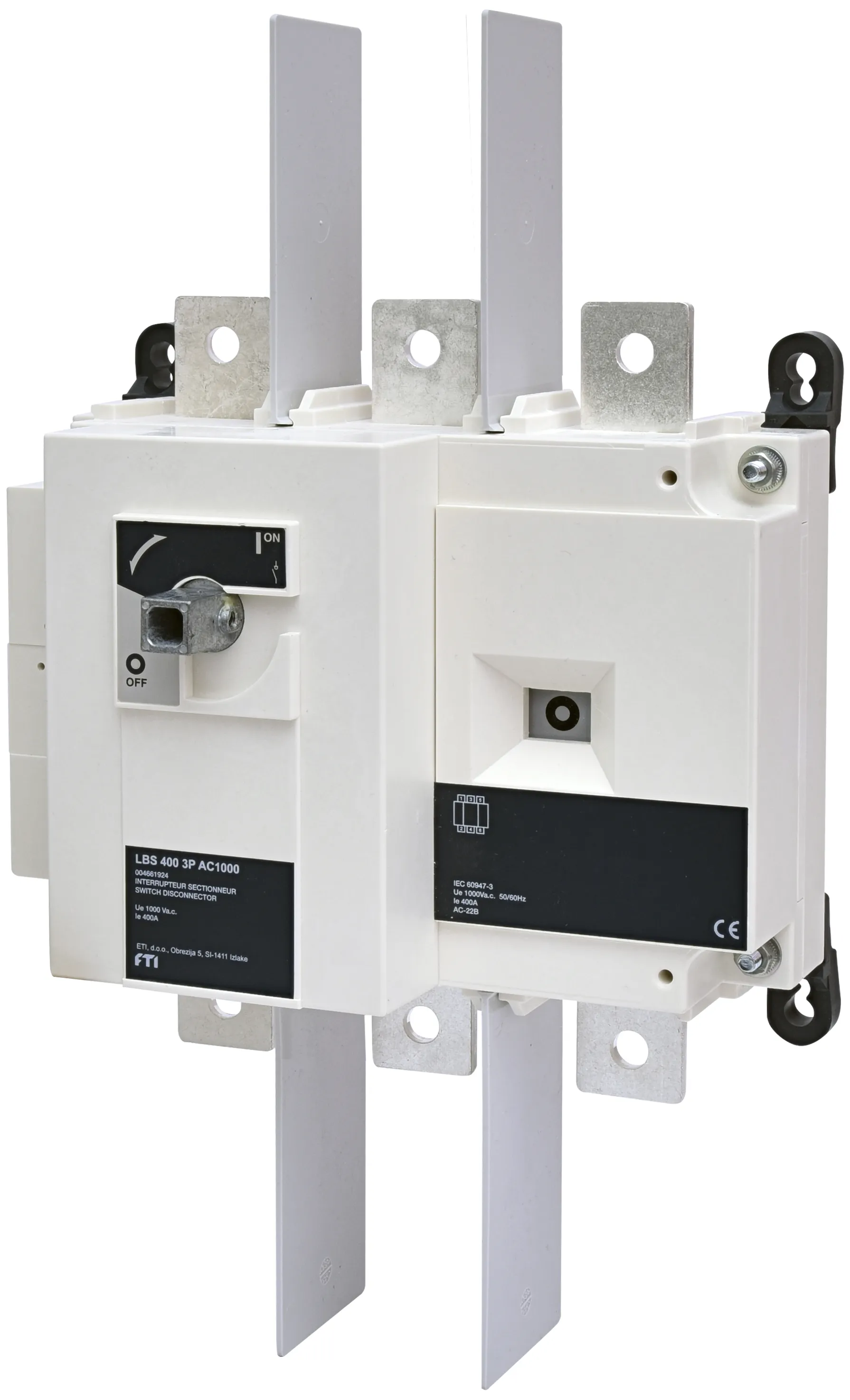

004661924
LBS 400 3P AC1000
Klassifizierungsname:
Funktion:
thermischer Strom Ith (A): 400
Bemessungsbetriebsstrom Ie DC-21 B at 1000V DC (A):
max. Bemessungsbetriebsspannung Ur (V)):
